Mobile Antennas

broshureUHF 5G+
Type: outdoor
Manufacturer: SCAN
Frequency (MHz): 450 – 3800
Gain (dBi): 0 – 9,1
Length (m): 0,64

broshureOMNI-493
Type: outdoor
Manufacturer: Poynting
Frequency (MHz): 617 – 3800
Gain (dBi): 6-9
Length (m): 0,65

broshureOMNI-402 (MIMO)
Type: outdoor
Manufacturer: Poynting
Frequency (MHz): 450 – 2700
Gain (dBi): 1-6,2
Length (m): 0,75

WIFI Antennas

broshureUHF243
Type: outdoor
Manufacturer: SCAN
Band: WIFI (2.4 GHz)
Gain (dBi): 2,1
Length (m): 0,21

broshureWIFI2B9
Type: outdoor
Manufacturer: SCAN
Band: WIFI a/b/g/h/j/n/p/ac (2.4 & 5 GHz)
Gain (dBi): 7,1
Length (m): 0,6

broshureOMNI-496
Type: outdoor
Manufacturer: Poynting
Band: WIFI a/b/g/h/j/n/p/ac (2.4 & 5 GHz)
Gain (dBi): 6 – 7,5
Length (m): 0,58

Combo antennas (3G/4G/5G/WIFI/GPS)

PUCK-4
Type: outdoor, MIMO
Manufacturer: Locomarine
Frequency GPS (MHz): 1575.42 ± 5
Frequency 3G/4G/WIFI (MHz): 698-960 / 1710-2690
Gain GPS (dB): 28
Gain 3G/4G/WIFI (dB): 3
Dimensions (mm): 110×53

Brochure

broshure

PUCK-5
Type: 3G/4G/5G/WIFI/GPS, outdoor, 2x MIMO
Manufacturer: Poynting
Frequency GPS (MHz): 1575.42 ± 5
Frequency 3G/4G/5G (MHz): 698-3800
Gain GPS (dB): 21
Gain 3G/4G/5G (dB): 1-6
Gain WIFI (dB): 5-7,5
Dimensions (mm): 99×36

Brochure

broshure

Antenna Mounts

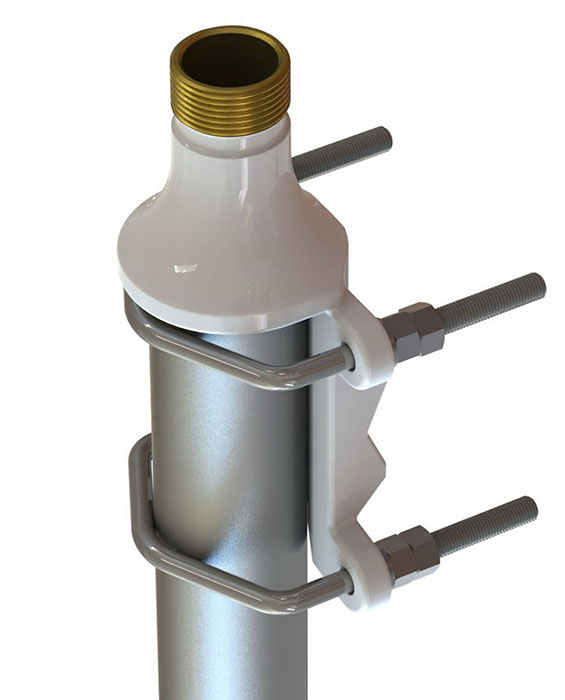

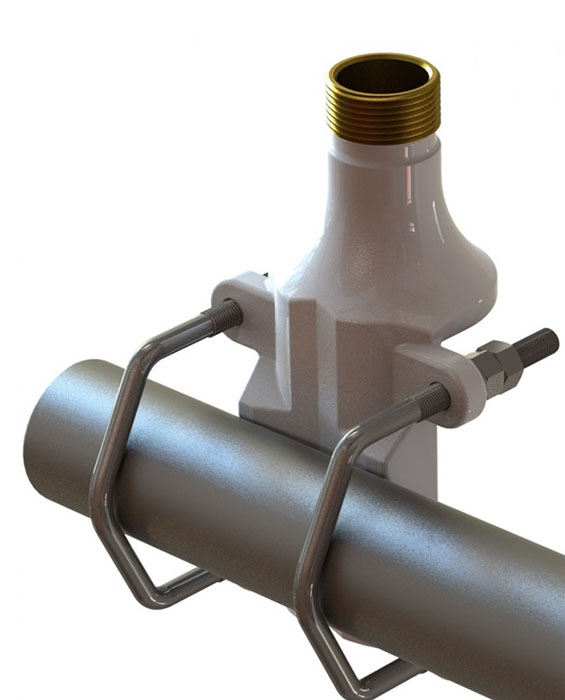

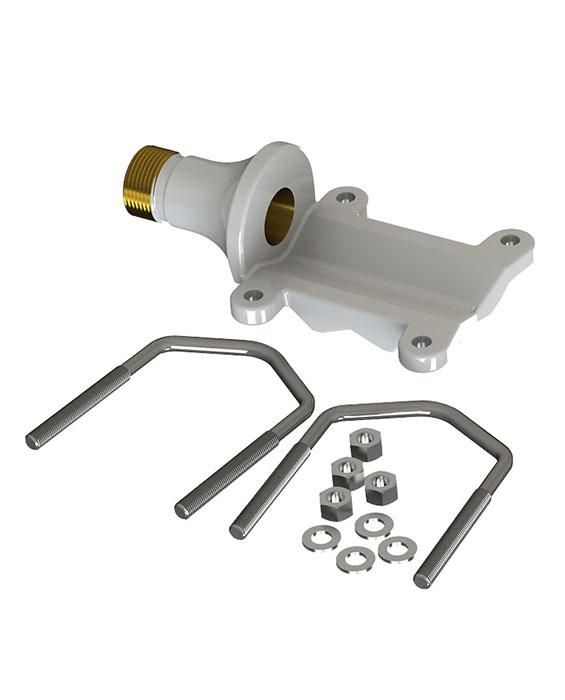

Mast-rail mount
Type: mast/rail mount
Description: Very strong heavy duty bracket for installation of antennas on pole with diameters from 38 mm to 75 mm (G2 1/2 water pipe) as well as horizontally on side beams with diameters from 30 mm to 75 mm. Optionally it can be placed on wall.
Material: solid brass and stainless steel
Finish: PU powder coated, white

Brochure

broshure

WIFI Booster mast-spreader mount
Type: mast/spreader mount
Description: Strong bracket for installation of WIFI Booster with SCAN WIFI antenna to mast or spreader. Antenna can be installed verticaly or horizontaly.
Material: stainless steel
Finish: PU powder coated, silver

Brochure

broshure

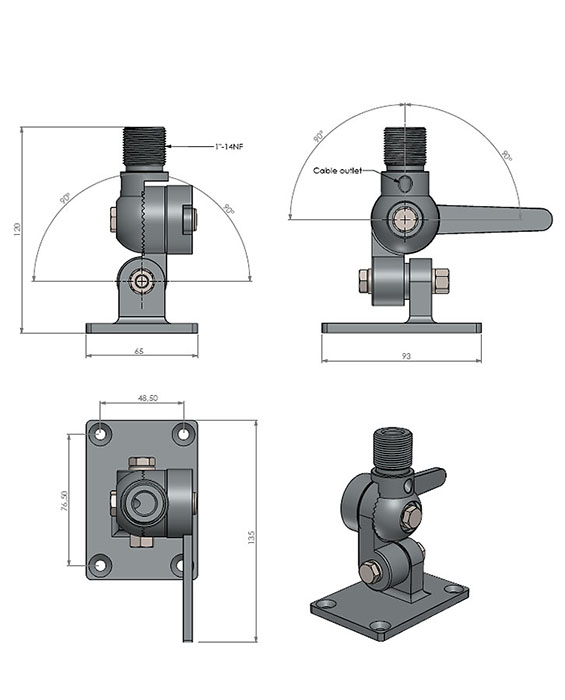

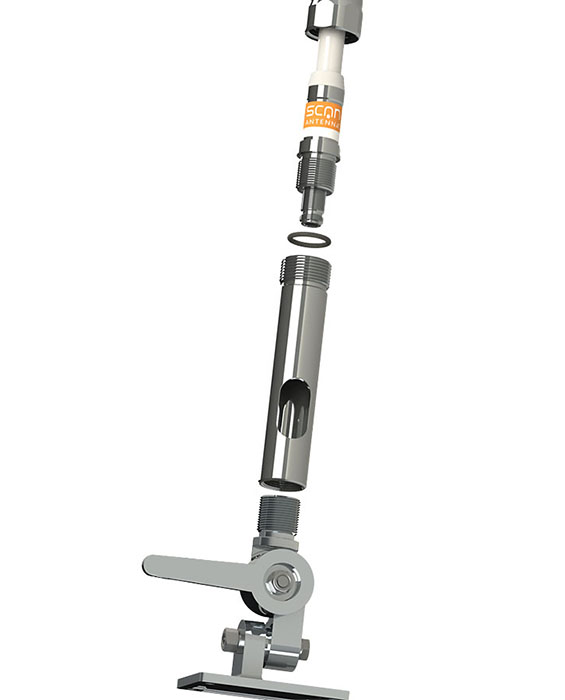

4-way mount
Type: 4-way adjustable mount
Description: This is a four way ratchet mount for installation of antennas with US-style internal 1″-14NF threaded base on deck etc.
Material: brass
Finish: chrome
Note: Adaptor tube is not included

Brochure

broshure

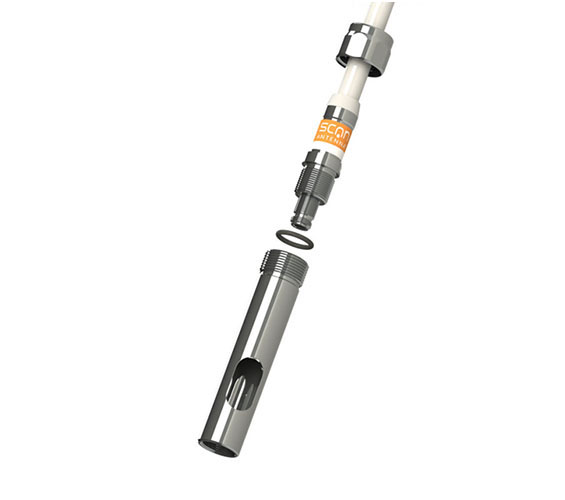

Adaptor tube
Type: adaptor for cable side mount
Description: Bright chromed solid brass adapter tube for converting US-style 1″-14NF threaded brackets into Standard G1″-11 threaded type. The adapter tube makes it possible to place all antennas with 1″ Revolving Nut mounting on any US-style bracket
Material: brass
Finish: chrome

Brochure

broshure

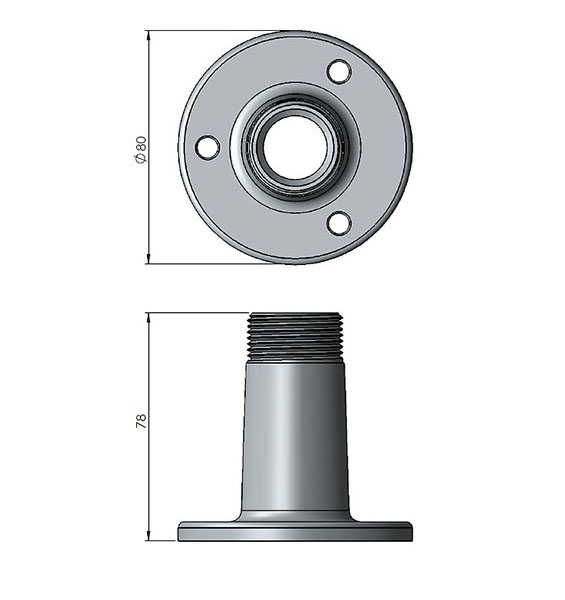

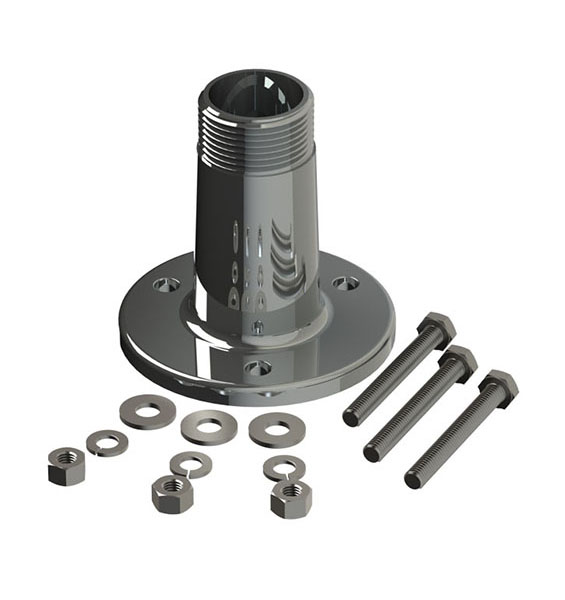

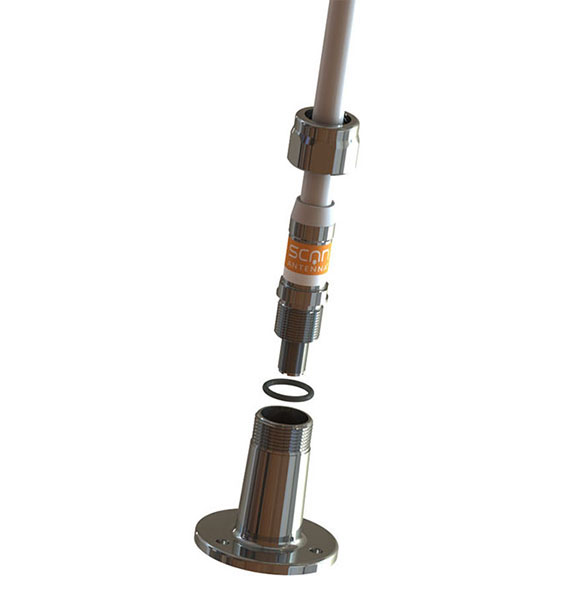

Deck mount
Type: deck mount
Description: Heavy-duty bright chromed solid brass mounting bracket for installation of antennas on deck etc. The bracket is especially made for antennas accepting the 1″ Revolving Nut mounting system
Material: brass
Finish: chrome

Brochure

broshure

Antenna Combiners

Antenna combiner is device that will give you ability to split one antenna to multiple devices. It can also be used when you want to connect multiple antennas to single device. Real signal loss with antenna combiner is between than 0.2-0.4 dB.

Antenna combiner 2-way
– if you want to use single mobile antenna with Yacht Router and Mobile Expander
– if you want to use two mobile antennas (e.g. 2G/3G and 4G) with one device (e.g. Yacht Router)

Antenna combiner 4-way
– if you want to use single mobile antenna with Yacht Router Pro and Mobile Expander Pro

Brochure

broshure
